Working Principle of the Pierce Oscillator

Crystal oscillators are essential for generating stable frequency signals in applications like RF circuits and microcontroller clocking. This guide shows you how to build a simple Pierce crystal oscillator for reliable frequency output.

Why Use a Crystal Oscillator?

Crystal oscillators offer highly stable frequencies, making them perfect for RF circuits, frequency synthesis, and microcontroller clocking. This Pierce oscillator works with quartz crystals from 2 to 20 MHz, and can operate with a 3V to 15V power supply, providing flexibility for various projects.

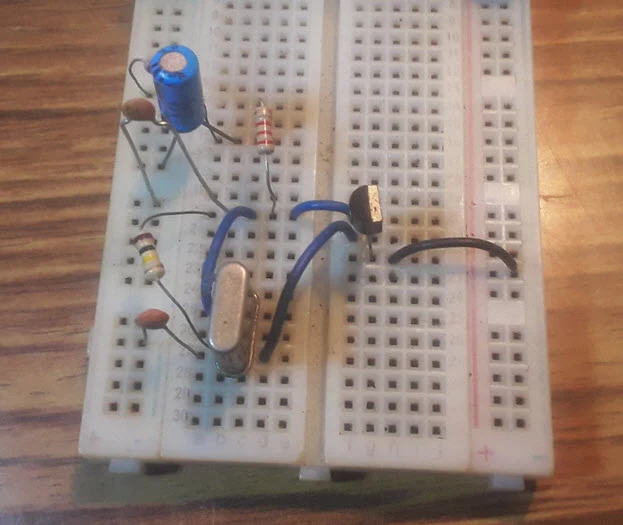

Building the Oscillator

Using the 2N3904 transistor, this Pierce oscillator circuit is easy to build on a breadboard with just a few components. The R3 resistor helps provide feedback and biasing for the transistor, amplifying the oscillation signal. Learn more about how Pierce oscillator works.

Testing the Oscillator

You can test the oscillator by probing the collector and observing the waveform on an oscilloscope. In our tests, oscillators were successfully created with a 4 MHz and 11.05 MHz crystal. Check out the oscillator testing video.



Applications

This oscillator is ideal for use in RF circuits, such as AM/FM transmitters and receivers. It’s also useful for determining the frequency of unknown quartz crystals. For more on oscillator circuits, visit our oscillator calculator.

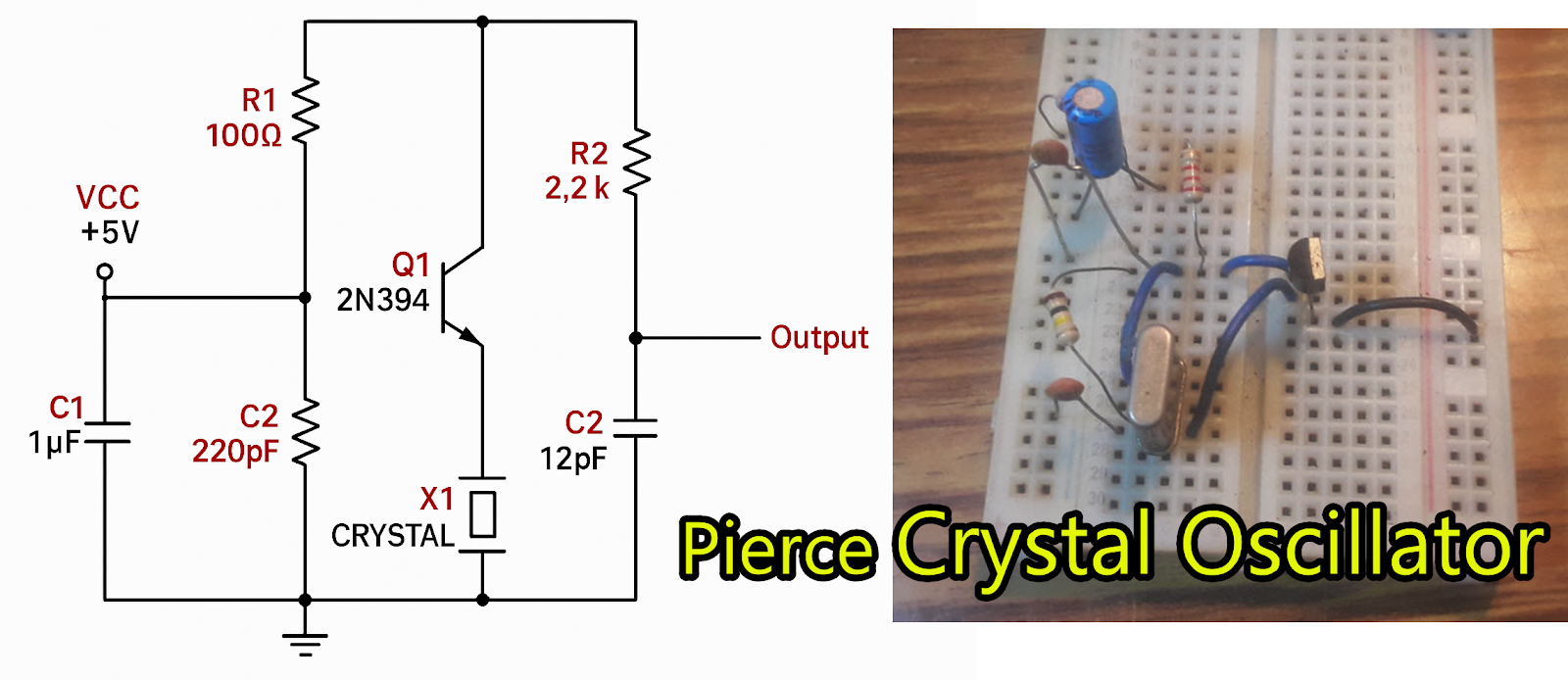

Working Principle of the Pierce Oscillator

The Pierce Oscillator is a crystal-controlled oscillator circuit that uses a single transistor as an amplifier and a quartz crystal to set a stable frequency.

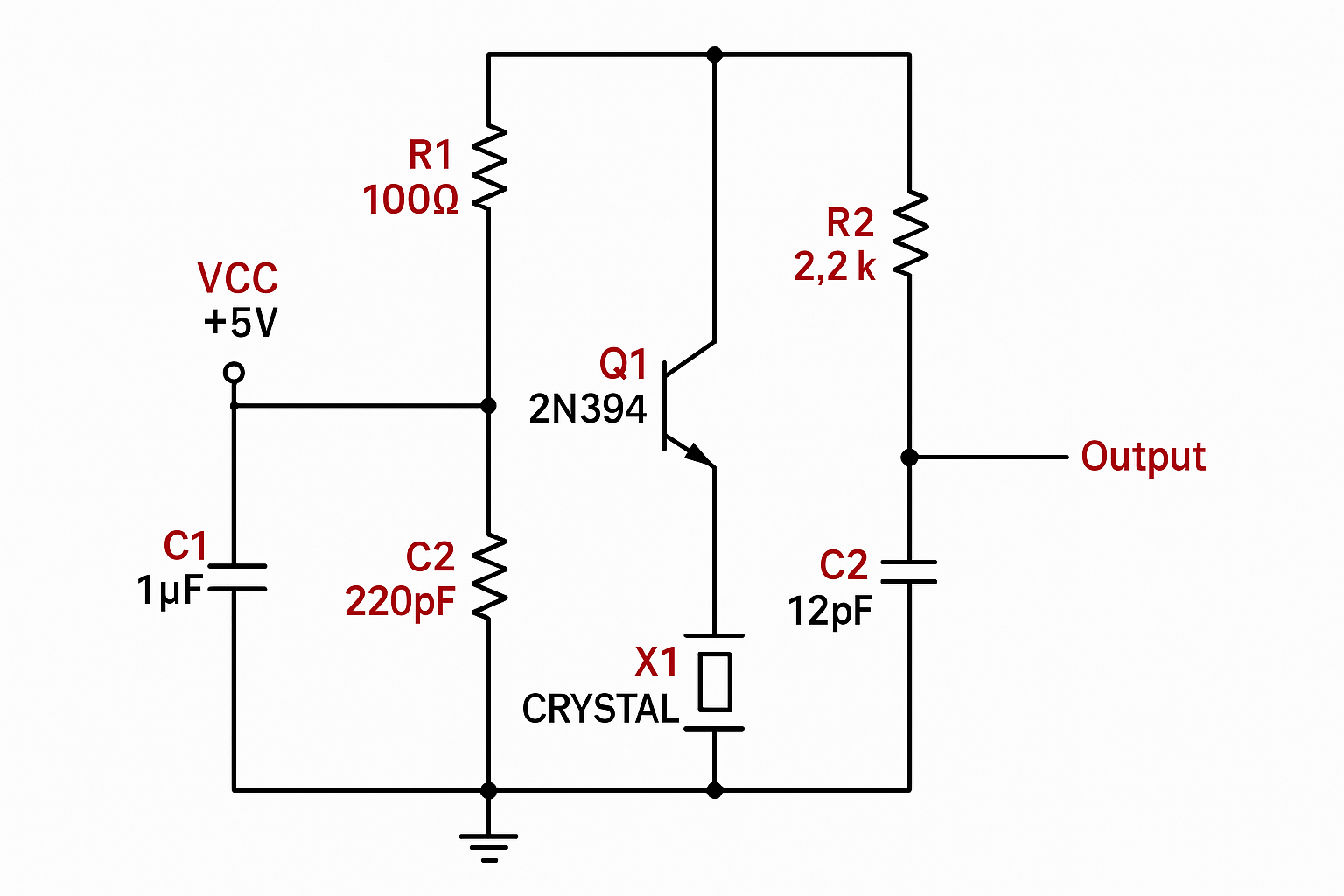

Component Explanation & Value Selection

1. Q1 (2N3904 NPN Transistor)

   • Function: Acts as an amplifier. It amplifies the small oscillations from the crystal and maintains a continuous oscillation.

   • Why 2N3904? It is a general-purpose NPN transistor with sufficient gain and switching speed for oscillator circuits.

2. X1 (Quartz Crystal)

   • Function: Determines the oscillator's frequency.

   • Value Selection: The frequency depends on the crystal used (e.g., 8MHz, 16MHz, etc.). Choose a crystal that matches your required clock speed.

3. C1 (1µF Decoupling Capacitor)

   • Function: Stabilizes the power supply by removing noise.

   • Value Selection: Usually between 0.1µF to 10µF, depending on power stability needs.

4. C2 (220pF) & C3 (12pF) Feedback Capacitors

   • Function: Work with the crystal to set the correct phase shift for oscillation.

   • Value Selection:

     • C3 (12pF) is typically selected based on the crystal’s load capacitance (CL) formula:

       $$C_L = \frac{C3 \times C2}{C3 + C2} + C_{stray}$$

       where C_stray is the stray capacitance (about 5pF).

     • The manufacturer’s datasheet recommends typical values, often 10pF – 30pF.

5. R1 (100Ω Resistor)

   • Function: Limits the current flowing into the transistor.

   • Value Selection: Typically 100Ω to 1KΩ, chosen to prevent excessive current.

6. R2 (2.2KΩ Bias Resistor)

   • Function: Sets the transistor’s base current for proper amplification.

   • Value Selection: Determined by the transistor’s gain (β) and base current requirement.

7. R3 (100KΩ Feedback Resistor)

   • Function: Provides negative feedback to stabilize oscillations.

   • Value Selection: Usually 10KΩ – 1MΩ; larger values provide weaker feedback.

8. VCC (5V Power Supply)

   • Function: Powers the circuit.

---

How Values Are Chosen

• Resistors are selected to ensure the transistor operates in active mode.

• Capacitors are based on the crystal's requirements.

• The crystal defines the frequency, and capacitors fine-tune stability.

Conclusion

This Pierce Crystal Oscillator is a simple and effective circuit for generating a precise clock signal. This simple Pierce crystal oscillator is reliable and easy to build. Whether for RF projects or frequency testing, it's a great solution. Explore additional oscillator designs like the 2N2222 phase shift oscillator. Let me know if you need a manually drawn schematic or any other clarifications!
