STM32F401RE Nucleo-64 Clock Sources and Their Functions

Overview of Clock Sources on STM32F401RE Nucleo-64

The STM32F401RE MCU provides several clock sources, each serving distinct purposes. These clocks drive the system, peripherals, and real-time functions.



Here’s a breakdown of the key options:

1. High-Speed Internal (HSI) Oscillator:
   • Frequency: 16 MHz
   • Description: An internal RC oscillator that’s factory-calibrated to ±1% accuracy.
   • Configuration: Enabled by default on the Nucleo-64 as a fallback or initial clock source.
2. High-Speed External (HSE) Oscillator:
   • Frequency: Typically 8 MHz (external crystal or oscillator required)
   • Description: Uses an external crystal or clock signal for higher precision.
   • Configuration: On the Nucleo-64, the HSE can be sourced from an 8 MHz clock provided by the ST-LINK debugger (MCO pin) via solder bridge SB50, though the board lacks an onboard crystal by default.
3. Phase-Locked Loop (PLL):
   • Frequency: Up to 84 MHz
   • Description: Multiplies the HSI or HSE frequency to achieve the MCU’s maximum clock speed.
   • Configuration: On the Nucleo-64, the PLL is typically configured to use the 8 MHz HSE (from ST-LINK) to generate the default 84 MHz system clock (SYSCLK).
4. Low-Speed Internal (LSI) Oscillator:
   • Frequency: ~32 kHz
   • Description: A low-power internal RC oscillator for the Real-Time Clock (RTC) or watchdog timer.
   • Configuration: Available for low-power timing tasks on the Nucleo-64.
5. Low-Speed External (LSE) Oscillator:
   • Frequency: 32.768 kHz
   • Description: Uses an external crystal for precise RTC operation.
   • Configuration: Optional on the Nucleo-64; requires adding a 32.768 kHz crystal to the board.

Clock Configuration on the Nucleo-64

The STM32F401RE Nucleo-64’s default setup uses the PLL with the HSE (8 MHz from ST-LINK) to produce an 84 MHz SYSCLK. This is achieved through the following:

• HSE Input: Solder bridges SB54 and SB50 are configured to route the ST-LINK’s 8 MHz MCO signal to the MCU’s OSC_IN pin.
• PLL Settings: The PLL multiplies the 8 MHz input (e.g., PLL_M = 8, PLL_N = 336, PLL_P = 4) to output 84 MHz.
• No Onboard HSE Crystal: Unlike some dev boards, the Nucleo-64 doesn’t include an 8 MHz crystal (X3 slot is empty), relying on ST-LINK or manual addition.

Developers can modify this using STM32CubeMX or code to switch to HSI (16 MHz) or add an external crystal for custom frequencies.

Applications of STM32F401RE Nucleo-64 Clock Sources

The flexibility of these clock sources makes the Nucleo-64 ideal for various projects. Here’s how they’re applied:

1. High-Speed Applications (PLL at 84 MHz):
   • Use Case: Real-time signal processing, motor control, audio processing.
   • Example: In a drone flight controller, the 84 MHz SYSCLK drives fast PWM signals for motor speed control and processes sensor data (e.g., gyroscopes) in real time.
   • Why PLL?: High frequency ensures rapid computation and precise timing.
2. General-Purpose Prototyping (HSI at 16 MHz):
   • Use Case: Basic IoT devices, LED displays, simple sensors.
   • Example: A smart home temperature monitor uses the HSI to run the MCU at 16 MHz, reading sensor data and sending it via UART to a display.
   • Why HSI?: No external components needed, reducing cost and complexity.
3. Timekeeping Systems (LSE at 32.768 kHz):
   • Use Case: Clocks, data loggers, wearable devices.
   • Example: A battery-powered data logger uses the LSE with the RTC to timestamp environmental readings every minute, ensuring accurate timekeeping over months.
   • Why LSE?: High precision and low power for long-term operation.
4. Low-Power Applications (LSI at 32 kHz):
   • Use Case: Sleep modes, watchdog timers, battery-powered gadgets.
   • Example: A wireless sensor node in a smart agriculture system uses the LSI to wake the MCU from sleep mode periodically, conserving battery life.
   • Why LSI?: Ultra-low power consumption during idle states.
5. Custom Frequency Needs (HSE with External Crystal):
   • Use Case: Industrial automation, communication systems.
   • Example: An RS-485 network controller adds an 8 MHz crystal to the Nucleo-64, using the HSE for stable serial communication at custom baud rates.
   • Why HSE?: External precision for specific timing requirements.

Optimizing Clock Usage

• Power vs. Performance: Use PLL for high-speed tasks, HSI for simplicity, or LSI/LSE for low-power modes.
• Hardware Mods: Add an HSE crystal (e.g., 8 MHz) and capacitors (e.g., 20 pF) to the X3 slot for standalone precision, bypassing ST-LINK dependency.

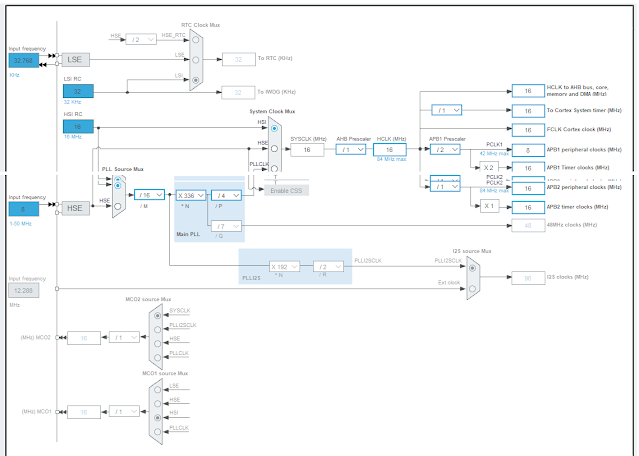

• Software Tools: STM32CubeMX’s clock configuration tool lets you visualize and adjust clock trees easily.

Why Choose STM32F401RE Nucleo-64 for Clock-Driven Projects?

The Nucleo-64’s affordability, Arduino compatibility, and integrated ST-LINK debugger make it a go-to for prototyping clock-dependent applications. Its 512 KB Flash and 96 KB SRAM, paired with flexible clock options, support everything from hobbyist experiments to industrial proofs-of-concept.

Conclusion

The STM32F401RE Nucleo-64’s clock sources—HSI, HSE, PLL, LSI, and LSE—offer a powerful toolkit for developers. Whether you’re building a high-speed motor controller, a low-power IoT sensor, or a precise timekeeping system, this board adapts to your needs. Experiment with its clock configurations, and unlock its potential for your next project!
